DCC-9-30A | EV Energy Management System | Splitter Box 120/240-208V, 30A breaker, Max 125A
DCC-9-30A | EV Energy Management System | Splitter Box 120/240-208V, 30A breaker, Max 125A
DCC-9-30A | EV Energy Management System | Splitter Box 120/240-208V, 30A breaker, Max 125A
DCC-9-30A | EV Energy Management System | Splitter Box 120/240-208V, 30A breaker, Max 125A
DCC-9-30A | EV Energy Management System | Splitter Box 120/240-208V, 30A breaker, Max 125A

DCC-9-30A | EV Energy Management System | Splitter Box 120/240-208V, 30A breaker, Max 125A

Regular price
$1,150.00
Sale price
$1,150.00

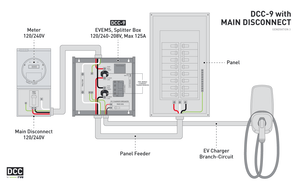

DCC-9 is an EV Energy Management System, specifically designed to allow the connection of a charger to the main feeder of a panel without affecting the load calculation.

DCC-9 is proudly manufactured in Canada by Thermolec.

OPERATION

    • Real-time reading of the total power consumption of a panel with pre-wired current transformers (CT)
    • Detects when the total power consumption exceeds 80% of a main circuit breaker capacity and temporarily de-energizes the charger
    • Automatically re-energizes the charger when the total power consumption of the main circuit breaker capacity is less than 80% for more than 15 minutes

FEATURES

    • Ideal for when no additional breaker slots are available in a panel
    • Does not affect the load calculation of a panel
    • Automatic utility billing of electricity consumer (particularly important for condo installations)
    • Can be mounted on the wall or ceiling

Included: Charge Controller, Splitter box (Max 125A), EV Charger Breaker (Max 60A) and pre-wired current transformers (CT).

DCC-9 Spec Sheet    Download the Technical Specifications

DCC-9 Spec Sheet     Download the DCC-9 Installation Manual



      INSTALLATION VIDEO
